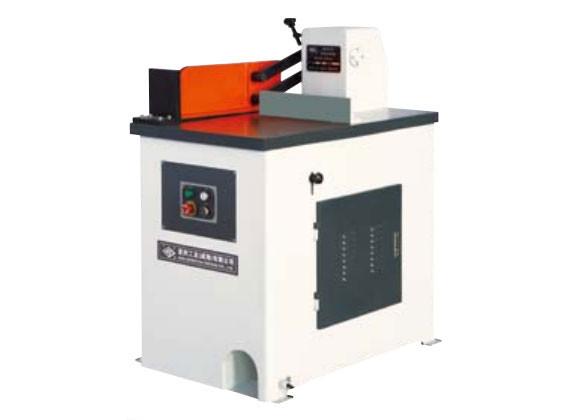

MJ214 Woodworking Cut-Off Saw
MJ214 Woodworking cut-off saw is suitable for wooden, plastic board and un-metal materials cutting off. it is drived by a 4kw copper motor, and can sawing the max. materials size of 90x220mm. The structure frame is heavy duty steel cabinet, which is built with precision for extra stability and designed for maximum safety. The cut-off saw is easy operation, the cutting cycle is controlled by a foot switch. The saw blade runs inside of frame for safety operation. Quick adjusting head clamp.
MJ214 Woodworking cut-off saw features:
- The saw blade can be easily and quickly changed due to the large side access door.
- Blade guard clamp holds the piece securely in place during the cut.
- Precision ground and balanced chrome steel alloy arbor.
- Motion cycles are pneumatically operated, and conveniently controlled by a foot switch.
- Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine.
- Easy belt tension is adjustment or replacement.
- In-feed and out-feed roller conveyors are optional for circular Cross cut off saw machine.
MJ214 Woodworking cut-off saw specification:
| Saw blade size | mm | Ø455xØ25.4x3.4-120T |
| Sawing thickness | mm | 5-90 |
| Sawing width | mm | 10-220 |
| Saw spindle speed | r/min | 3200 |
| Air source pressure | MPa | 0.6 |
| Motor power | kw | 4 |
| Dust outlet diameter | mm | Ø100 |
| Overall size | mm | 870x660x1150 |
| Net weight | kg | 400 |
Package and shipping:
The cut-off saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
